Sunrise Medical Empulse R20

Power Add-On Kits Power Add-on Kit

Description
Additional Information

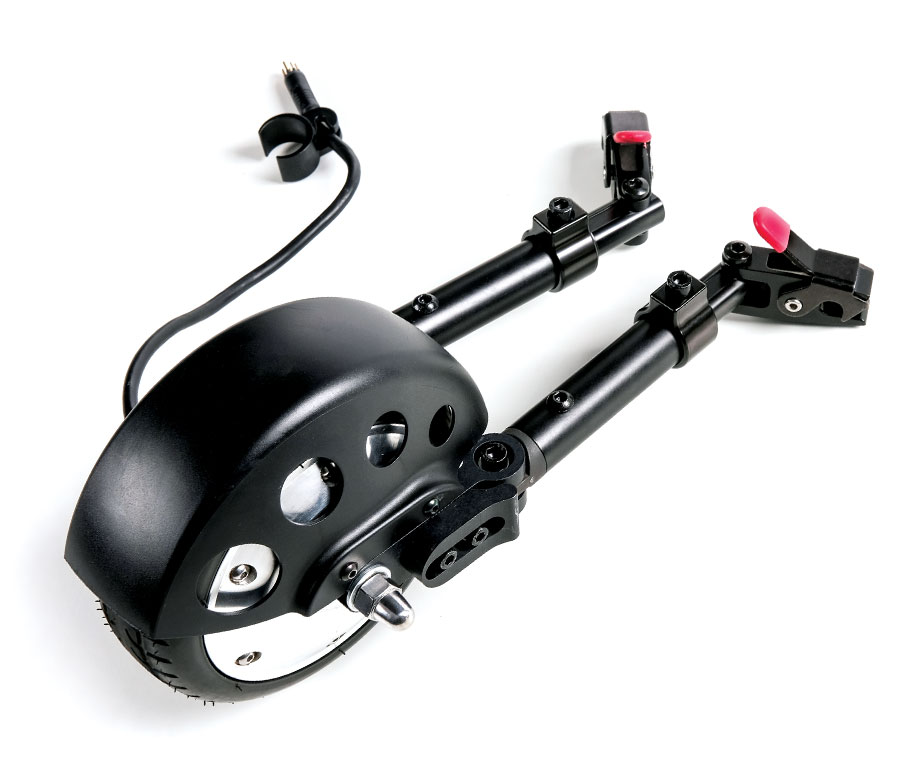

EMPULSE R20

ULTRA LIGHWEIGHT FOLDING POWERPACK

INTRODUCING THE EMPULSE R20
ULTRA LIGHTWEIGHT
FOLDING POWERPACK

KEY FEATURES

LIGHTWEIGHT At just 4.5kg the R20 is one of the lightest power packs on the market

EASY TO USE AND MOUNT The R20 provides easy operation as well as quick and easy mounting

STORAGE The only power pack on the market that can be folded while still connected to the wheelchair

PERFORMANCE There is no compromise on performance as the R20 achieves a 9 mile range, it can climb 5cm kerbs and 10 degree slopes, up to a max user weight of 170kg

RELIABLE A solid, long lasting tyre and lithium ion battery promise a quality and reliable product. Coupled with a 2 year warranty on batteries and a 3 year warranty on the motor

MODERN A modern and sleek product with a compact design

UNIVERSAL The R20 will fit to nearly all box frame wheelchairs with a 22-28mm tube diameter

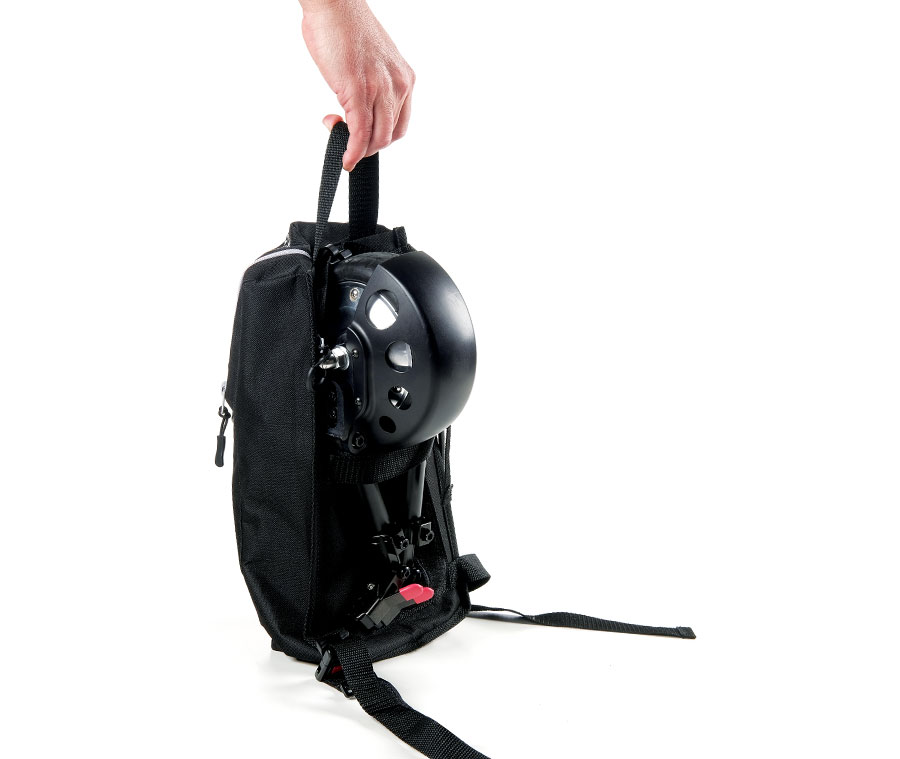

LIGHTWEIGHT
JUST 4.5 KG

The R20 is one of the lightest power packs on the market, with a total carry weight of just 4.5kg, it is less than half the weight of other power packs currently available.

This includes 3kg for the motor and a 1.4kg lithium-ion battery which can be disconnected and transported separately.

This means that the R20 is easy to carry, store and transport for all users.

EASY TO
MOUNT

Thanks to the intuitive, easy to grip two peg design, it couldn’t be easier to mount and dismount the power pack.

The Ultra lightweight motor helps this further and makes mounting the R20 light and easy.

EASY TO
USE

The easy to use control system has one push button to go, as well as an easy to read display showing the speed and battery gauges.

A height adjustable handle allows the user to achieve the most comfortable position when operating the device.

STORAGE
UNIQUE FOLDING

The R20 is the only powerpack on the market that can be folded with the wheelchair.

This unique feature means you no longer have to connect and disconnect each time you transport or store the wheelchair.

The powerpack can be left on the chair so it’s ready to go at a moments notice and the 4.5kg total carry weight allows the chair to be lifted while the R20 is still attached.

PERFORMANCE
NO COMPROMISE

Despite it’s lightweight nature and compact appearance, there is no compromise on performance.

The R20 can achieve up to a 9 mile range, as well as having the ability to climb 5cm kerbs and 10 degree slopes.

It will also cater for users up to 170kg in weight (190kg total including the wheelchair) meaning the R20 is a product that works for all.

MODERN
AESTHETICS

The compact, lightweight design together with matt black colouring on the motor and connectors gives the R20 a sleek and modern look.

When mounted to the wheelchair, the power pack doesn’t obstruct the user and it’s subtle size keeps all the attention on the client.

RELIABILITY
LONG WARRANTY

The R20 contains 250w brushless motors that don’t wear over time versus traditional brushed versions, as well as a powerful, robust and long lasting tyre and a lithium ion battery ensuring a durable and reliable product. This is reinforced with an extended 2year warranty on the battery and 3 years on the motor.

UNIVERSAL
FITTING

The simple, easy to use mounting system means that the R20 can be fitted to almost any manual, box-frame wheelchair as long as the tube diameter is between 22-28mm.

Price exc. VAT
VAT @ 0% on completion of valid exemption form

Please call our customer service team on 01784 451258
or email sales@mobilityforyou.co.uk

Specification
Seat width (mm)	320 - 600 mm
Drive distance (km)	15 km
Max. speed (km/h)	5 km/h (adjustable in three steps: 2/3.7/5 km/h)
Batteries	5.8 Ah / 36 V (209 Wh) - Lithium Ion
Max. safe slope (º)	10º / 18%
Max. load (Kg)	190 kg (Load: User & Wheelchair)
