HOGGI SWINGBO VTi

Description
Additional Information

Children’s Wheelchair EXCLUSIVELY available in the UK
only from Mobility For You

SWINGBO VTi

Active wheelchair with 45° tilt for kids & adolescents.

The further development of the innovative patient-centred care concept.

SWINGBO® VTi stands for the consequent further development of the innovative
patient-centred care concept.
The new designed mechanism of the tilt function offers a comfortable handling.
The adjusting range of the seat angle is starting from -5° up to +45°.

The (abduction) frame guarantees an abducted seating position any time.

Frame with abduction. Tilt from -5° up to +45°.

Modern and sporty design. Modular and variable construction system.

SWINGBO® VTi – an impressive design with a modern, sporty and compact appearance.
Several adjustment possibilities and a wide range of accessories for more freedom and
an individual patient-centred care. Mobility base, seat frame and panel, backrest panels and footrest systems can be ordered in any combination separately.

Exclusive and harmonious look. Light and very compact for transport.

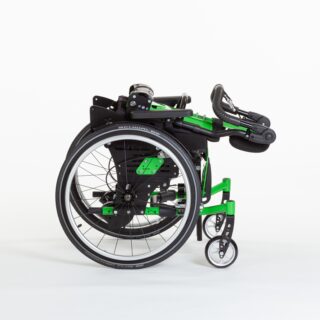

Extreme compact folding size. Absolute lightweight.

Fold your SWINGBO® VTi with 3 hand grips for transport or a car ride easily.
Raising it for use is similarly easy.
With the weight of just 15 kg (basically configurated / seat width 28) SWINGBO® VTi
is able to mess with exclusive „active wheelchairs“ without growth capacity.

Tilt in space and backrest recline.
According to the individual need of the child SWINGBO® VTi offers comfortable changeovers between active and passive positions. Both functions are easy to handle and guarantee various angles for the perfect and individual patient-centred care.

Tilt in space from -5° up to +45°.
The seat angles are adjustable from -5° up to +45° (in 4° steps).

Backrest recline from 80° up to 120°.
The backrest angles are adjustable from 80° up to 120° (in 10° steps).

The perfect position – in almost every situation.

Various options. Custom-made solution for you.

Create your SWINGBO® VTi especially for your needs. Everything is possible.
HOGGI offers a wide range of accessories for your perfect and individual needs.

Innovative and comfortable accessories. From one source.

Large growth capacity.
The seat depth can be adjusted by approximately 8 cm and the backrest height by
approximately 9 cm.

Easy adjustment of „active degree“.
The seat unit of the SWINGBO® VTi is adjustable continuously and allows an easy
and stepless adjustment of the „active degree“.

Grows with your child. Easy active degree adjustment.

HOGGI

FRAME COLOURS

SWINGBO VTi outdoor front end
(Sold Separately)

The outdoor front end. Mounting with minimal manipulation.

The outdoor front end is designed particularly for outdoor use and allows independent moving on unmade roads (dirt or gravel roads).
The perfect push aid for the assistant, to overcome together with patient also daily, urban barriers as bouldering, tracks or the like.

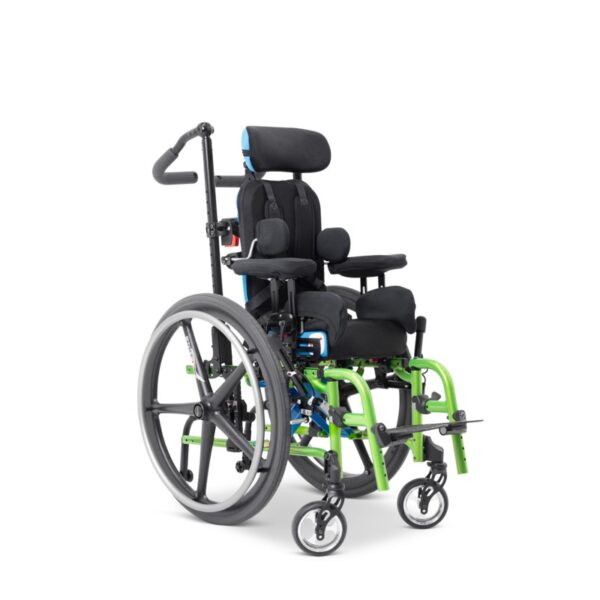

Spex Wonderseat Bounce
(Sold Separately)

Wonderseat Bounce

Wonderseat Bounce has been designed for children who require a moderate-to low level of postural support when sitting.

It’s ideal for users who will be transferring in and out of their wheelchairs with support from parents and caregivers but may require some postural support when sitting for long periods.

The seat features fewer moving parts and swing-away options to ensure durability.

Spex Wonderseat Space
(Sold Separately)

Wonderseat Space

Wonderseat Space was created for children who require a moderate-to-high level of postural support when sitting.

It helps manage the influence of gravity on the posture of children who typically use a tilt-in-space wheelchair.

The postural support supplied is able to match the needs of clients with limited or no sitting control and the supports are able to be moved away to assist with transfers.

Available in two sizes:

Size 0: 6 months to 5 years old.
Size 1: 4 – 10 years old

Price exc. VAT
VAT @ 0% on completion of valid exemption form

Please call our customer service team on 01784 451258
or email sales@mobilityforyou.co.uk to book a demonstration

Specification
Seat width (cm)	24 cm 26 cm 28 cm 30 cm 32 cm 34 cm 36 cm
Seat depth (cm)	24-30 cm 24-32 cm 26-34 cm 28-36 cm 30-38 cm 32-40 cm 34-42 cm
Seat height (cm)	37-47 cm for all seat widths
Seat angle	-5° to +45° for all seat widths
Backrest height (cm)	angle and height adjustable 33-42 cm 35-44 cm 37-46 cm 39-48 cm 41-50 cm 43-52 cm 45-54 cm
Backrest angle (°)	angle and height adjustable 75° up to 115° or from 80° to 120° (in 10° steps)
Lower leg length (cm)	16-37 cm
Footrest angle (°)	-10° to +10°
Rear wheel diameter	20", 22", 24"
Front castor diameter	4", 5", 5,5"
Camber	3°, 6°, 9°
Load capacity (kg)	60 kg
