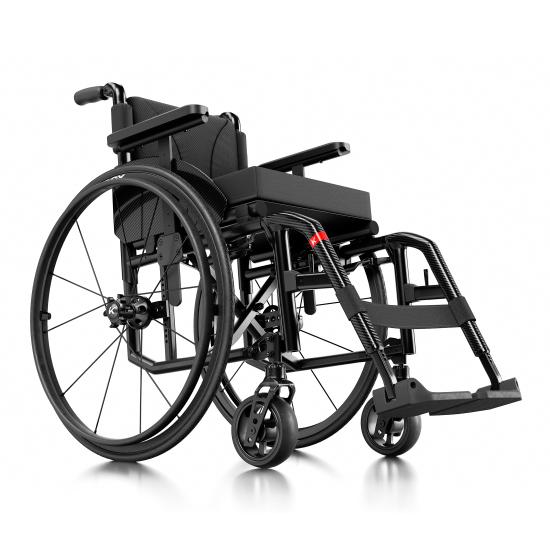

Küschall COMPACT

Description
Additional Information

Küschall®
COMPACT

VERSATILITY
& COMFORT
IN ONE CHAIR

FOLDABLE
& LIGHT

COMPACT

Küschall Compact is the absolute standard
for reliability and quality in one foldable chair.
It can easily be adapted to suit varying needs to enhance
overall comfort. Available in a fixed front frame with
impressive rigidity for excellent driving performance
or a swing-away frame, making transfers, storage
and transportation even easier.

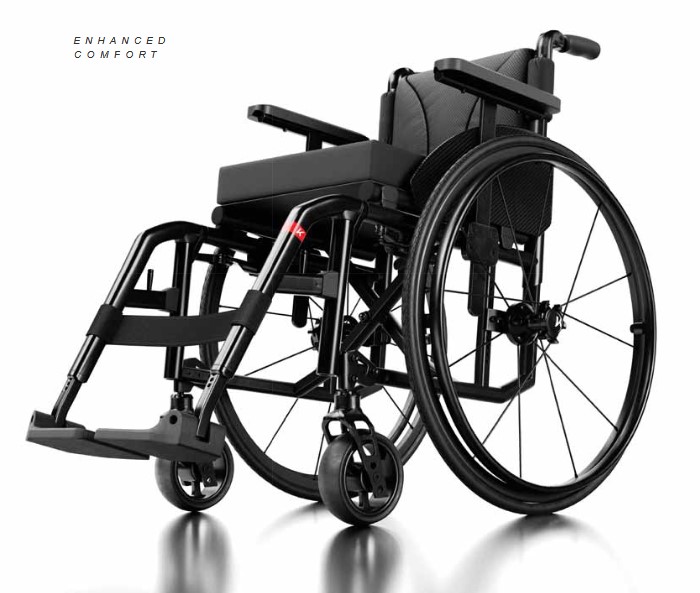

ENHANCED
COMFORT

OUTSTANDING
FUNCTIONALITY

A foldable backrest option makes
the chair small and compact for easy
transportation. Available in 70°
or 80° legrest angles, in addition to the
adjustable precision locking mechanism
with the swing-away legrests for
increased rigidity and optimal drive.

INTRODUCING
COMPACT CARBON

Small detail. Noticeable difference. Optional carbon legrests
bring a lighter, more refined finish to the Compact. A subtle
upgrade that enhances both the feel and the overall aesthetic,
without changing the reliability you depend on.

TAKE A
CLOSER LOOK

ANGLE
ADJUSTABLE
BACKREST
Available as an option, the angle
adjustable and foldable backrest folds
neatly over the seat rails for compact
storage and easy transportation.

EASY
FOLDING
The unique design of the cross brace
makes the Compact simple to fold.
A key feature if you have reduced
strength or limited hand function.

KEEP ON TRACK
Intuitive and unique castor housing
adjustment, to ensure your wheelchair
always performs at its most energy efficient,
making propelling easier for longer.

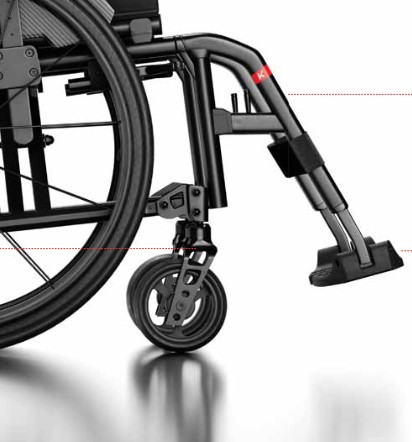

SWING-AWAY
LEGRESTS
Making transport, storage or transfers
easier. 70° or 80° legrest angle.

Küschall | C

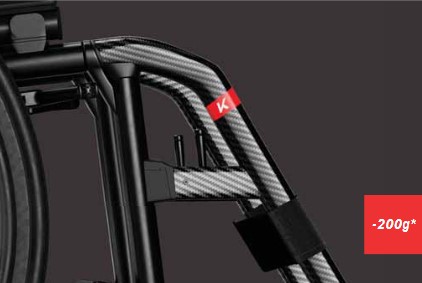

Optional carbon legrests for
a lighter more refined finish.

FOOTPLATE
The footplate range fits all
seat widths and features an
anti-slip surface for increased
comfort and support.

CUSTOMISE YOUR
COMPACT

1. FRAME COLOUR

Standard frame colours

Extra frame colours*

*Extra delivery time will apply.

2. DECAL STYLE

3. DECAL COLOUR

3D VISUALIZER

Configure your new Küschall wheelchair

Build your new Küschall wheelchair step by step, choose
the options that best suit you for a customised chair spec.

Configure

Price exc. VAT
VAT @ 0% on completion of valid exemption form

Please call our customer service team on 01784 451258
or email sales@mobilityforyou.co.uk to book a demonstration

Specification
Seat width (mm)	280 - 500 mm in increments of 20 mm
Seat depth (mm)	320 - 500 mm in increments of 20 mm
Seat height (mm)	front: 380 – 530 mm; rear: 360 – 500 mm in increments of 10 mm
Backrest angle (°)	82° / 86° / 90° / 94° / 98° / 102°
Backrest height (mm)	300 - 510 mm in increments of 15 mm
Total width (mm)	SW + 180 mm
Total length (mm)	70° approx. 870 - 1220 mm 80° approx. 850 - 1200 mm
Max. safe slope (º)	7º
Max. load (Kg)	130 kg
