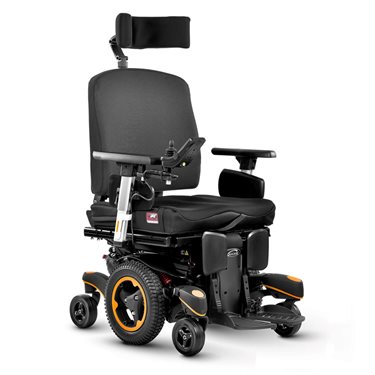

Sunrise Medical QUICKIE Q700 M HD

Description
Additional Information

Q700 M HD

Bariatric Powerchair

MID-WHEEL
PERFORMANCE,
EVOLVED FOR HD.

Discover the ultimate driving experience with the striking Q700 M HD, the high-performance bariatric power wheelchair with superior style and manoeuvrability.

Boasting unique HD suspension for a super-smooth ride, enjoy an intuitive driving experience with a mid-wheel drive base loaded with the latest technology to keep you safely on-track.

With a seat width up to 28” and a max user weight of 250kg, enjoy comfort as standard with the amazing SEDEO PRO HD seating, the biomechanical seating system that mirrors your body’s natural position for an ideal seated position at all times.

PREMIUM BASE
TECHNOLOGY.

The Q700M base technology was designed for off-road use and offers proven quality since 2017. Through re-engineering this base, we have created the ultimate high performance, high durability, outdoor powerchair for HD users.

MWD TECHNOLOGY
Offering the same manoeuvrability as our renowned Q500M range, you have greater control along with a turning circle of just 1260mm.

R-NET ADVANCED JOYSTICK
Upgrade your on-board technology with this large, easy-to-read HD display and simple to use paddle switches. Its built-in Bluetooth and i-device technology also allows you to connect to your smart devices all from the comfort of your Q700 M HD.

18 mile

RANGE
Powered by punchy 80 Ah batteries, you’ll get everywhere you want to go without worrying about performance for HD use. Also available with 60 Ah.

POWERFUL MOTORS
Enjoy power and speed at your fingertips with the 4-pole high torque motors. With a choice between 6 or 8 kph top speed, the Q700 M HD will keep up with any challenge.

UNIQUE HD SUSPENSION
With weight sitting forwards, front castors can struggle to articulate leading to poor ramp transitions as well as increased pitching. Our unique suspension with anti-pitch gas strut locking technology locks all wheels and suspension out when it is not engaged, reducing the ability for the chair to pitch forward, ensuring the user is kept stable and upright.

A POWERED-UP
POWERCHAIR

The Q700 M HD doesn’t just have BIG chair performance, it’s also loaded with BIG features to meet your clinical and lifestyle needs. Plus, power seat options are accessible at a touch of a button thanks to QUICKIE’s patented assignable buttons!

SEDEO PRO HD UPHOLSTERY
The SEDEO PRO HD offers an excellent choice of options to create the perfect fit without sacrificing comfort. Select between a variety of armrests, legrests, headrests, seat and back cushions – including the JAY J3 Back, JAY Balance and J2 Plus cushions.

POWERED CLINICAL OPTIONS
Don’t be limited when it comes to powered options. The Q700 M HD offfers 50 degrees of tilt rated to 250kg and 30 degree tilt with 30 degree powered recline.

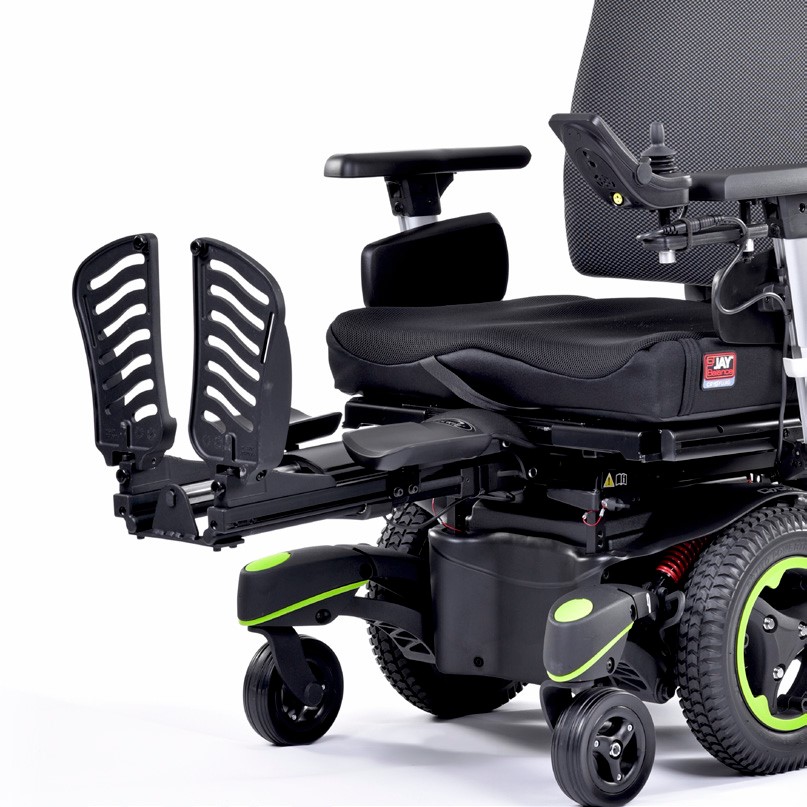

FOOTREST OPTIONS
Available with traditional 70º swing-away legrest, upgrade to manual or power elevating to get the most optimal positioning and comfort. Alternatively, the 90-180º elevating centre-mount (also available as manual or power) minimises the space at the front of your chair, so you can get closer to everyday objects like tables. There’s even an option to lower the footplate to the floor to help with transfers.

MULTI-ADJUSTABLE ARMRESTS
This height, width and angle-adjustable armrest can wrap around you, providing greater positioning possibilities whilst keeping your Q700 M HD’s width as compact as possible. The (optional) stabiliser bar also helps to prevent downward flexing that may sometimes happen during day-to-day use.

BUILT FOR OUTDOORS.
AT HOME INDOORS.

Turning on its own axis, enjoy intuitive driving and excellent manoeuvrability in tight compact spaces with the Q700 M HD’s narrow (622 mm) base and a 1100 mm turning circle. You can also easily fit under tables and access Wheelchair Adaptive Vehicles (WAVs) with a low seat height from just 415 mm.

1120 mm

TURNING CIRCLE
Thanks to its mid-wheel drive technology, the drive wheel on the Q700 M HD is positioned directly underneath your seated position (so there’s more weight on the drive wheel).

1070 mm

BASE LENGTH

SEDEO PRO,
THE BEST SEAT
IN THE HOUSE.

Reinforced seating with an extended SEDEO seat plate, reinforcement struts, arm and leg rests. The Q700 M HD offers a maximum user weight of 250kg.

BARIATRIC SEATING
Seat widths of 500mm (20”) up to 566mm (26”) with an additional 50mm (2”) armrest.
Seat depth available from 460mm (18”) up to 560mm (22”).

SEDEO PRO FLEXIBLE BACK
Don’t sacrifice comfort to sit upright. Unlike soild backs, this back wraps around and contours to your spine’s shape to provide complete contact, comfort, and stability. Because it wraps around you, the integrated laterals hug your sides, causing the foam to mould to your anatomical curves and keeps your trunk stable and aligned. It’s so immersive, even moderate-to-severe kyphotic postures or spinal can be accommodated.

DISTINGUISHED STYLE

With the Q700 M HD, we’ve taken style to the next level. With a matt-black chassis finish, hidden wiring and components combined with sharp-tailored upholstery, it’s a sleek and contemporary design.

FANCY A CHANGE?
The Q700 M HD also comes with a choice of 7 (SEDEO PRO) contemporary colour inlays to perfectly complement its striking matt-black bodywork. Simply replace the colour inlays. Styling your powered wheelchair has never been so simple.

ACCENT COLOURS

Price exc. VAT
VAT @ 0% on completion of valid exemption form

Please call our customer service team on 01784 451258
or email sales@mobilityforyou.co.uk to book a demonstration

Specification
Total width (mm)	620 - 660 mm
Total length (mm)	1070 - 1100 mm (with centre-mount)
Seat width (mm)	500 - 660 mm
Seat depth (mm)	460 - 560 mm
Tilt angle (°)	50°
Backrest angle (°)	90 - 130º
Turning radius (m)	560 - 630 mm
Drive distance (km)	max. 25 km (with 80 Ah batteries)
Max. speed (km/h)	6 & 8 kph
Batteries	60 Ah and 80 Ah (optional)
Max. safe slope (º)	6°
Max. load (Kg)	250 kg
